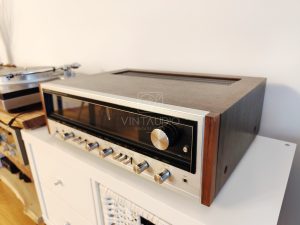

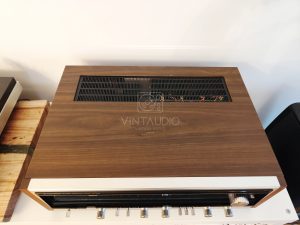

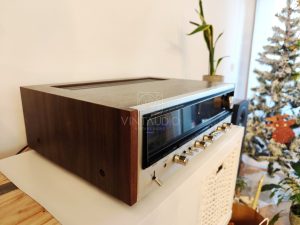

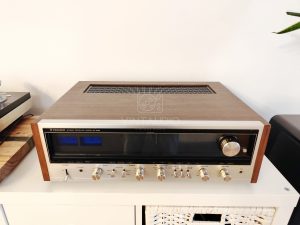

Pioneer SX 838

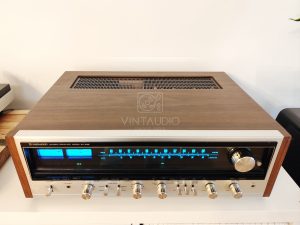

This is the Pioneer SX-838 from 1974–75, a fantastic example of Pioneer’s revered x3x receiver series — known for their build quality, warm analog sound, and timeless industrial design. The SX-838 sits comfortably in the upper-mid range of the lineup, offering just the right balance between power, features, and price — then and now.

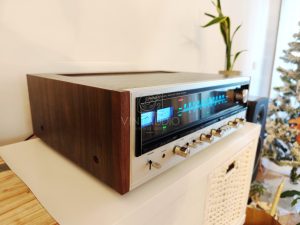

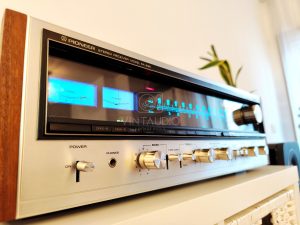

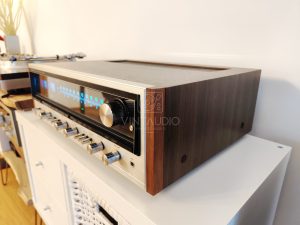

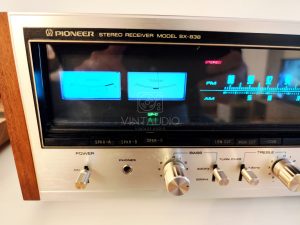

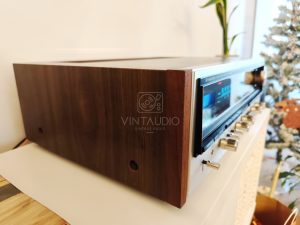

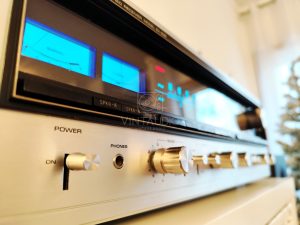

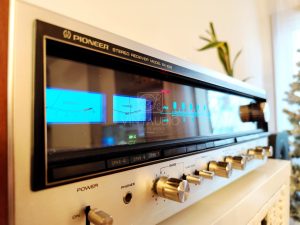

Classic Pioneer styling is all here: the brushed aluminum faceplate, the warm amber dial lighting, the solid feel of the knobs and switches — everything exudes a sense of durability and thoughtful design. It’s a receiver that doesn’t just perform well — it looks and feels like a piece of serious hi-fi equipment.

Rated at 50 watts RMS per channel into 8 ohms, the SX-838 offers more than just numbers, the sound is tight, dynamic, and remarkably transparent for its class. In practice, it sounds even more powerful than the specs suggest, with a strong low end and an engaging, full-bodied character.

Technically, it was quite advanced for its time. The FM tuner section features a 6-phase limiter and linear ceramic phase filters, providing excellent selectivity and low distortion. It uses a PLL (Phase Locked Loop) FM MPX demodulator — a sophisticated approach that ensures precise stereo decoding and stable reception. The inclusion of a precision equalizer amplifier and a switched tone control circuit gives the user more flexibility in tailoring the sound, something rarely seen at this level back then.

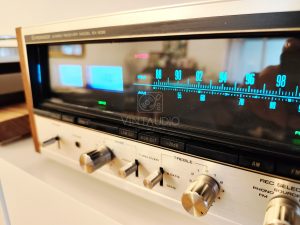

A particularly clever and unusual feature is the dual control layout: a recording selector and a listening function selector. This allows for operations like recording an FM broadcast while simultaneously listening to a different source, such as phono. For anyone with a tape deck or multiple sources, it’s a very handy and forward-thinking design.

Sonically, the SX-838 is pure Pioneer — warm, musical, and powerful. It handles a wide range of speakers with ease, and has a very forgiving yet detailed sound signature that’s perfect for long listening sessions. Whether you’re spinning vinyl, tuning into FM, or running a tape deck, it brings a sense of richness and life to any source.

The SX-838 is more than just a receiver — it’s a reflection of a time when hi-fi gear was built with care, pride, and a genuine passion for music reproduction. A real joy to listen to, and a true classic in every sense.

Watch the video:
Specifications:
Tuning range: FM, MW
Power output: 50 watts per channel into 8Ω (stereo)
Frequency response: 10Hz to 70kHz
Damping factor: 45
Input sensitivity: 2mV (mic), 2.5mV (MM), 150mV (DIN), 150mV (line)
Signal to noise ratio: 65dB (mic), 70dB (MM), 95dB (line)

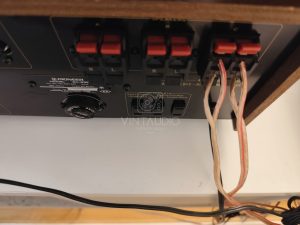

Output: 150mV (line), 30mV (DIN), 1V (Pre out)
Speaker load impedance: 4Ω to 16Ω
Semiconductors: 4 x FET, 4 x IC, 43 x transistors, 24 x diodes
Dimensions: 520 x 175 x 420mm
Weight: 16.2kg
Accessories: FM T-type antenna
Year: 1974
